Power Agile Operating Systems

Energy-constrained devices such as smartphones are integrating multiple hardware components presenting significant performance-efficiency tradeoffs: processors and memory that can scale voltage and frequency to become more efficient as they slow down; multiple radios that can be used interchangeably while also tuning their polling rates and idle timeouts to trade off efficiency for latency or throughput; and screens that can dim or reduce refresh rates to become more efficient while reducing quality. Multiple performance-efficiency knobs create the need for applications to continuously select the right balance of component settings to maintain acceptable performance while saving as much energy as possible. We refer to this ability as power agility.

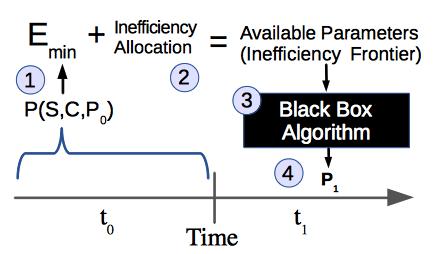

architecture

Achieving power agility goes hand-in-hand with effective energy management. Previous approaches to energy management have attempted to limit or prioritize application energy consumption using absolute constraints such as energy or power. Unfortunately, neither constraining power nor energy is sufficient to intelligently manage limited energy resources because neither of these quantities reflects how efficiently energy is being used. So we have focused on identifying how efficiency changes as device components make power-performance tradeoffs and as application requirements change. Rather than allocate energy, we believe that treating inefficiency as a resource and managing it within the operating system is a much more promising approach than managing energy directly.

Even once effective cross-component energy management becomes possible, it is still unclear how to allocate limited energy resources in the way that improves application performance.Even once effective cross-component energy management becomes possible, it is still unclear how to allocate limited energy resources in the way that improves application performance. As a result, we have chosen to pursue a two-level approach where the operating system is responsible for limiting application energy consumption while applications themselves are allowed to make cross-component energy management tradeoffs as long as they do not exceed their energy budget. This simplifies the operating system energy management role while enabling flexibility in how applications use energy to improve their own performance.

We are exploring the operating system changes necessary to achieve power agility through a development environment that harnesses the gem5 simulator, the Linux kernel, and the Android platform. This allows us to make changes both above and below the hardware-software boundary, and we have utilized this freedom to implement novel complementary hardware capabilities and software support.
