The PocketLocker Personal Cloud Storage System (Complete)

Centralized cloud storage services such as Dropbox have revolutionized the way that users share files and access data across their growing number of devices. But today’s cloud storage options have serious limitations affecting mobile battery-powered smartphones. Many central cloud storage providers require each client to have enough storage for an entire replica, which may not be feasible on smartphones with an order-of-magnitude less storage than laptops and desktops. Centralized cloud storage does not scale as users add more storage and misses the opportunity to harness free space users already have. And centralized cloud storage provides poor support for mobile devices, both failing to leverage natural mobility patterns when distributing data and potentially causing costly mobile data traffic.

We are building a next-generation distributed storage service called PocketLocker which combines storage available on multiple personal devices into a personal storage cloud. PocketLocker uses erasure coding to break files into multiple chunks which are distributed across available storage on all participating devices. PocketLocker’s data placement algorithms relies on spatial access patterns associated with files to locate file data close to where it will be used, allowing data traffic to be offloaded to faster and more energy-efficient Wifi connections and decreasing the costly use of mobile data networks. Through all of these improvements, PocketLocker creates free personal storage clouds that are larger, faster, and more energy-efficient than today’s cloud storage solutions, while also providing configurable tradeoffs between reliability, capacity, latency.

open

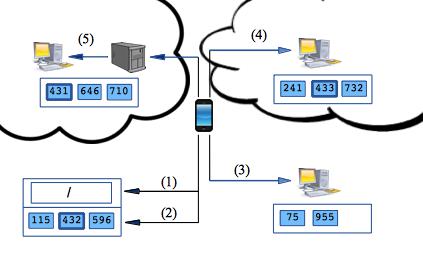

The figure above demonstrates how a typical file open might proceed using the PocketLocker system. Chunks of the file may exist on the smartphone itself, on other nearby devices owned by the user (laptops, tablets, desktops), on the user’s devices located further away (a work laptop while at home), as well as hosted by free or paid cloud storage services that the user subscribes to. The key research challenge PocketLocker attempts to solve is how to determine where to locate chunks to balance performance, storage capacity, and fault tolerance. Our MobiCASE'14 paper provides an overview of the entire PocketLocker architecture. Overall we consider PocketLocker to a component of a future class of personal cloud computing systems that will allow users to continuously leverage the computation, memory, storage, and other capabilities of all of their personal devices.
